Galvanized Steel Perforated Base Insulation Spindle Pins For Marine Repair
Quick details of perforated base insulation spindle pins
Product name :perforated base insulation spindle pins,peforated abse insulation pins
Material:Galvanized Steel, Aluminum, Stainless steel
Base material :hardness steel or stainless steel material ensure it is enough non-deformable
Base size :50mmx50mm(2"x2") in common ,other to be request
Pin material: softly anneaded mild steel wire and stainless steel wire or aluminum wire
Pin Diameter:Dia 2.7mm (12GA) ,3.0mm(11GA),3.4mm
Pin length :25mm-320mm
Accessories:self locking washer ,dome cap washer
Application :HVAC system in marine repair or building
Specification of perforated base insulation spindle pins
|
Specification of self adhesive rock wool insulation pins
|
|
pin diameter
|
tape base
|
pin length
|
|
12 ga (.106)/ 3mm
|
50mm Square
|
1
|
|
12 ga (.106)/ 3mm
|
50mmSquare
|
1-5/8
|
|
12 ga (.106)/ 3mm
|
50mm Square
|
2-1/2"
|
|
12 ga (.106)/ 3mm
|
50mm Square
|
3-1/2"
|
|
12 ga (.106)/ 3mm
|
50mm Square
|
4-1/2"
|
|
12 ga (.106)/ 3mm
|
50mm Square
|
5-1/2"
|
|
12 ga (.106)/ 3mm
|
50mm Square
|
6-1/2"
|
|
12 ga (.106)/ 3mm
|
50mm Square
|
8"
|
|
12 ga (.106)/ 3mm
|
50mm Square
|
8-1/2"
|
|
12 ga (.106)/ 3mm
|
50mm Square
|
9-1/2"
|
|
12 ga (.106)/ 3mm
|
50mm Square
|
10-1/2"
|
|
12 ga (.106)/ 3mm
|
50mm Square
|
12"
|

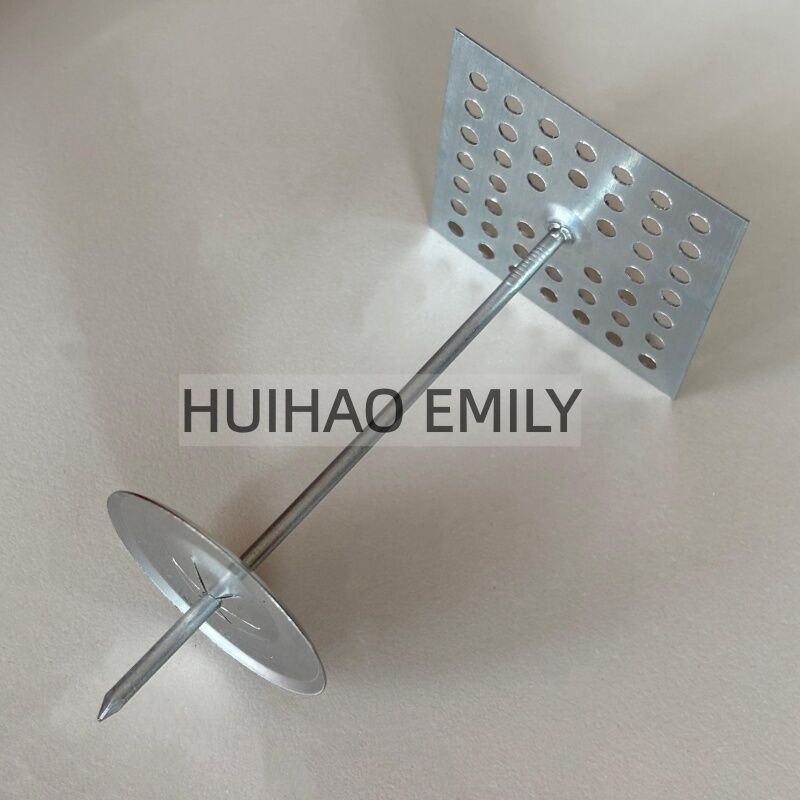

Pic of of perforated base insulation spindle pins
Application of perforated base insulation spindle pins
|
Insulation Pins With Perforated Base Plate is suitable for air tube insulation, glass curtain wall insulation,steel structure and other thermal insulation construction is not high temperature, the adhesive method can be used for thermal nail special fast dry glue or can be used for advanced foam adhesive
|
|
Package of perforated base insulation spindle pins
|
|
Package of perforated base insulation spindle pins
>> Package
1. 500 pcs/1000pcs per carton. 64 cartons per pallet.
to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency. |
How to choose the length for perforated base insulation spindle pins
Glass wool *rock wool polysyren*PU panels*Foam glass*Lighting building boards made of wood
wool*Coir matting *Cork boards
How to choose suitable pin length for fixing insulation material ?
=38mm insulation pin fixing for 15mm-25mm insulation materials
=63mm insulation pin fixing for 25mm-45mm insulation materials
=90mm insulation pin fixing for 45mm-70mm insulation materials
=110mm insulation pin fixing for 40mm--70mm insulation board
=145mm insulation anchors for 75mm-105mm insulation slabs
=170mm fireproof fixing for 105-130mm insulation panels
=200mm metal fasteners for 135mm-160mm insulation boards
HUIHAO Company introuduce:
HUIHAO company is a insulation fasteners/insulation anchors manufacturing company,we produce
all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products
is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins
customized metal washer
all kinds of self locking washers, Dome caps.
